Low-E Membrane for Existing Windows
Up to 40% savings on air conditioning and heating. Reduces solar energy penetration in summer and keeps heat in during winter with our nanothermal technology.
99 %UV blocked
95 %infrared blocked
10 yearswarranty
See Our Technology in Action
Discover how our Low-E membrane transforms your windows
How It Works
Effective protection in summer and winter, in the south and in the north

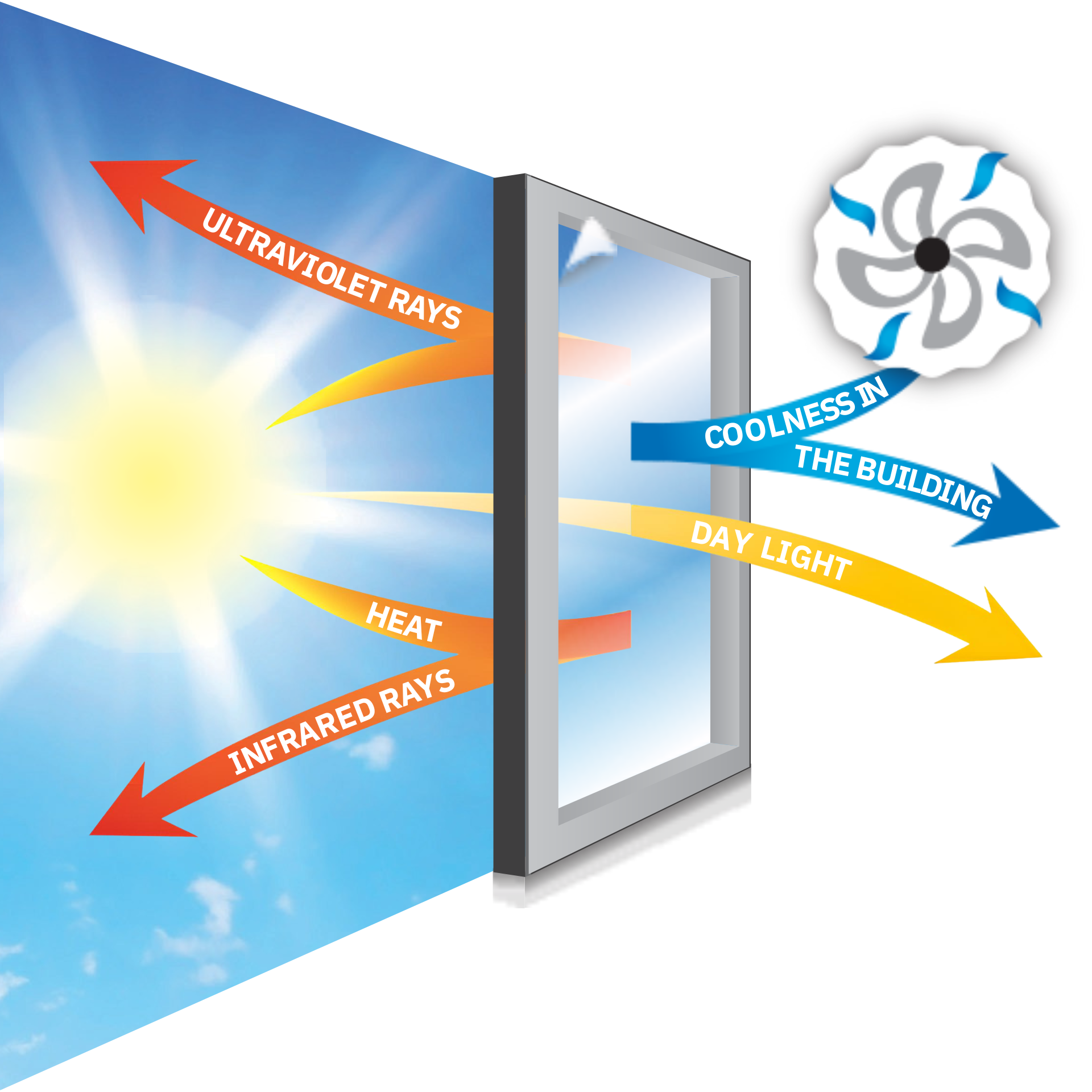

Where does the sun's heat go?
On a summer day, the heat that comes through the glass doesn't leave. It warms the air near the window, the floor and the furniture, then builds up in the room.
Morning
Late afternoon
With membrane
Infrared passes through the glassInfrared coming in
95% of infrared blocked right at the glass surface95% infrared blocked
The floor and furniture store the heatFloor and furniture heating up
Natural light still comes inNatural light preserved
Warm air rises and builds up under the ceilingHeat building up at the ceiling
The room heats up much lessRoom heating up much less
- 95% of infrared blocked at the glass, instead of entering the room
- The room heats up much less, and heat builds up more slowly
- Natural light still comes in

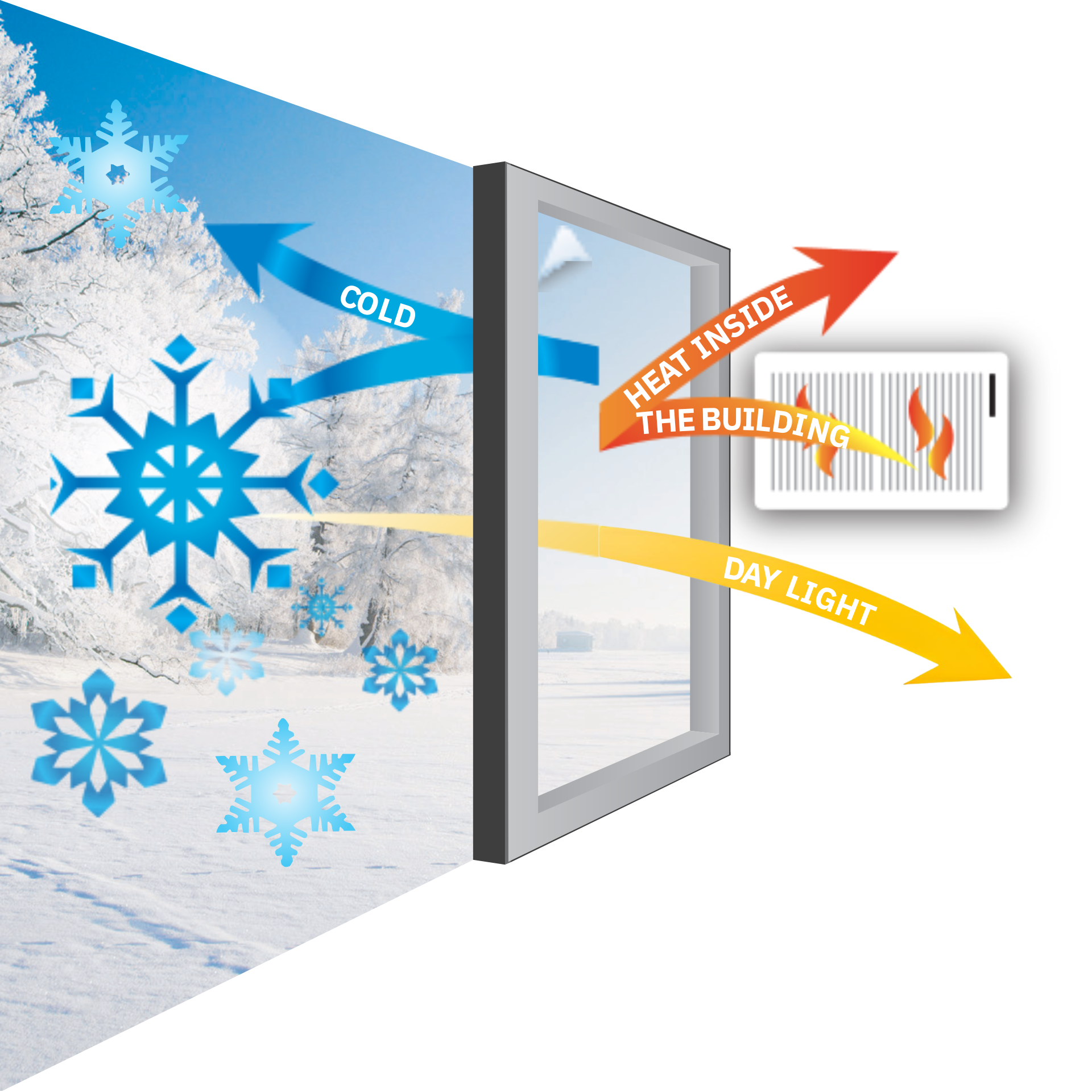

In winter, keep more heat inside
On a cold night, some of the heat from your heating escapes through the windows, and the cold glass fogs up with condensation. The membrane sends more of it back into the room.
Evening
Early morning
Without membrane
With membrane
Heat from the heating escapes through the glassHeat escaping
The membrane increases the heat sent back into the roomMore heat sent back into the room
The cold glass fogs up with condensationGlass covered in condensation
Up to 50% less condensationUp to 50% less condensation
The heating runs more to compensateHeating working harder
Less heating for the same comfortLess heating, same comfort
- More of your heating's warmth sent back into the room, instead of escaping through the glass
- Up to 50% less condensation on the glass
- Less heating for the same comfort
Colors that last longer
UV rays fade fabrics, woodwork and products on display. The membrane blocks 99% of them at the glass, without taking light away from the room.
Today
Over time
Without membrane
With membrane
UV passes through the glassUV coming in
99% of UV blocked at the glass99% UV blocked
Fabrics and wood fade in the sunFabrics and wood fading
Natural light still comes inNatural light preserved
Products on display lose their colorsDisplays fading
Furniture, floors and merchandise keep their colors longerColors preserved longer
- 99% of UV blocked at the glass
- Fabrics, wood and window displays keep their colors longer
- Natural light still comes in
See the Difference
Half-and-half comparison: with and without Low-E membrane
-
Dakar Airport
View project -
2075 Robert-Bourassa
View project -
Farmacia Medina
View project -
Iberostar Cancún
View project -
Westin Montreal
View project -
Tim Hortons
View project
"We noticed a difference in comfort from day one. A year and a half later, we're seeing savings of about 30%"
2075 Boulevard Robert-Bourassa, Office Tower
Half-and-half comparison: with and without Low-E membrane
1 / 6
Technical Specifications
Measured Performance
Filtration Performance
| UV Ray Blocking (Ultraviolet) | 99% |
| IR Ray Blocking (Infrared) | 95% |
| Glare Reduction | 19% |
| Perceived Light Blocking | 12% |
Performance Test
| SC (Shading Coefficient) | 0.45 |
| TSER (High Visibility Membrane) | 51.18% |
| U-Factor | 0.48 BTU/h·ft² |
Health and Environmental Certifications
North America & Europe
| Total Lead Content | Not Detected |
| Total Mercury Content | Not Detected |
| Fire Certification | Passed |
| PFOS and PFAS | Not Detected |
| ROHS & REACH | Passed |
Certified and Approved
Glass Compatibility
Interior installation (except in special cases)
- Single pane clear
- Single pane tinted
- Double pane clear
- Double pane tinted
- Double pane Low-E
- Triple pane clear
- Triple pane tinted
- Triple pane Low-E
- Green Product Award 2011Montreal Home Show
- CLC Award 2023Net Zero Target, United Kingdom
- Wates Sustainable Technology 2025Financial Services Competition, United Kingdom
- 10-year warrantyPerformance and installation
- Profitable in 1 to 4 yearsDepending on energy prices. How it's calculated
Frequently Asked Questions
The product
What is the warranty?
10 years for our nanothermal window insulation.
Does the insulation protect my furniture and fabrics?
Yes. Our product blocks up to 99% of UV rays, which protects your furniture and fabrics from fading.
Is it toxic?
No. Our products meet environmental standards, are certified and approved. Safe for everyone.
Does it change the appearance of my windows?
Slightly. Our membrane allows visible light through while blocking heat and UV. It may give windows a slight bluish tint, but the effect remains subtle.
What is the return on investment period?
Generally between 1 and 4 years: about 1 year where energy is expensive, 4 years at most where it is affordable (in Montreal, for example, about CA$0.10 per kWh), thanks to savings on cooling and heating. Savings vary depending on your windows' initial condition and existing insulation.
Installation and maintenance
Is the installation done inside or outside?
Except in certain exceptional cases, installation is done inside your premises.
Do I need to leave the premises during application?
No, the application is safe and you can stay on site. However, the installation is not completely silent and requires clear access to windows. If this may affect your work or concentration, we can adapt to your schedule or work during low-occupancy periods.
Can it be installed in winter?
Yes, we can install the product in winter. You'll just need to allow for longer drying time and the premises must be heated, but the product's effectiveness is not affected.
Are residential homes qualified?
Yes. The majority of our clients are commercial, but we also do residential installations with the same level of quality.
How do I clean the windows after installation?
Use a soft microfiber cloth with products free of ammonia, abrasives, alcohol, or vinegar. These products could damage the membrane. For a stubborn stain, see the difficult cases in our care guide.
Ready to Save?
Reduce your air conditioning costs in summer and heating costs in winter. Keep your premises cool or warm. Contact us for a free quote.
Solutions by Sector
The Low-E membrane reduces solar energy penetration and adapts to all your needs
